Streamlining Development with Hexagonal Architecture and Pydantic

Introduction

In collaborative development environments, particularly on projects like S06-26-NC-Equipo-83 within the No-Country-simulation initiative, ensuring a consistent and maintainable codebase is paramount. As teams grow and features evolve, the challenge of integrating changes from multiple contributors across different technologies (like Python for the backend and TypeScript/React for the frontend) can lead to unexpected issues and slow down progress. Our recent merge into the develop branch highlighted the continuous need for robust architectural patterns to manage complexity and streamline integration.

The Problem

Without clear architectural boundaries and strict data contracts, a project can quickly become a tangled mess. We observed common pitfalls during development cycles:

1. Inconsistent Data Models: Backend and frontend teams often develop their own interpretations of data structures, leading to deserialization errors or unexpected behavior during API calls.
2. Tight Coupling: Business logic frequently leaks into presentation or data access layers, making changes difficult and increasing the risk of introducing bugs.
3. Complex Merges: Integrating feature branches, especially when core logic or data structures are modified without a clear separation of concerns, often results in time-consuming conflict resolution and re-testing.
4. Testing Challenges: Tightly coupled components are harder to test in isolation, leading to less reliable tests and longer feedback loops.

The Solution: Embracing Hexagonal Architecture and Pydantic

To combat these challenges, we've actively embraced Hexagonal Architecture (also known as Ports and Adapters) combined with Pydantic for rigorous data validation in our Python services. This approach offers a powerful synergy for maintaining clarity and robustness:

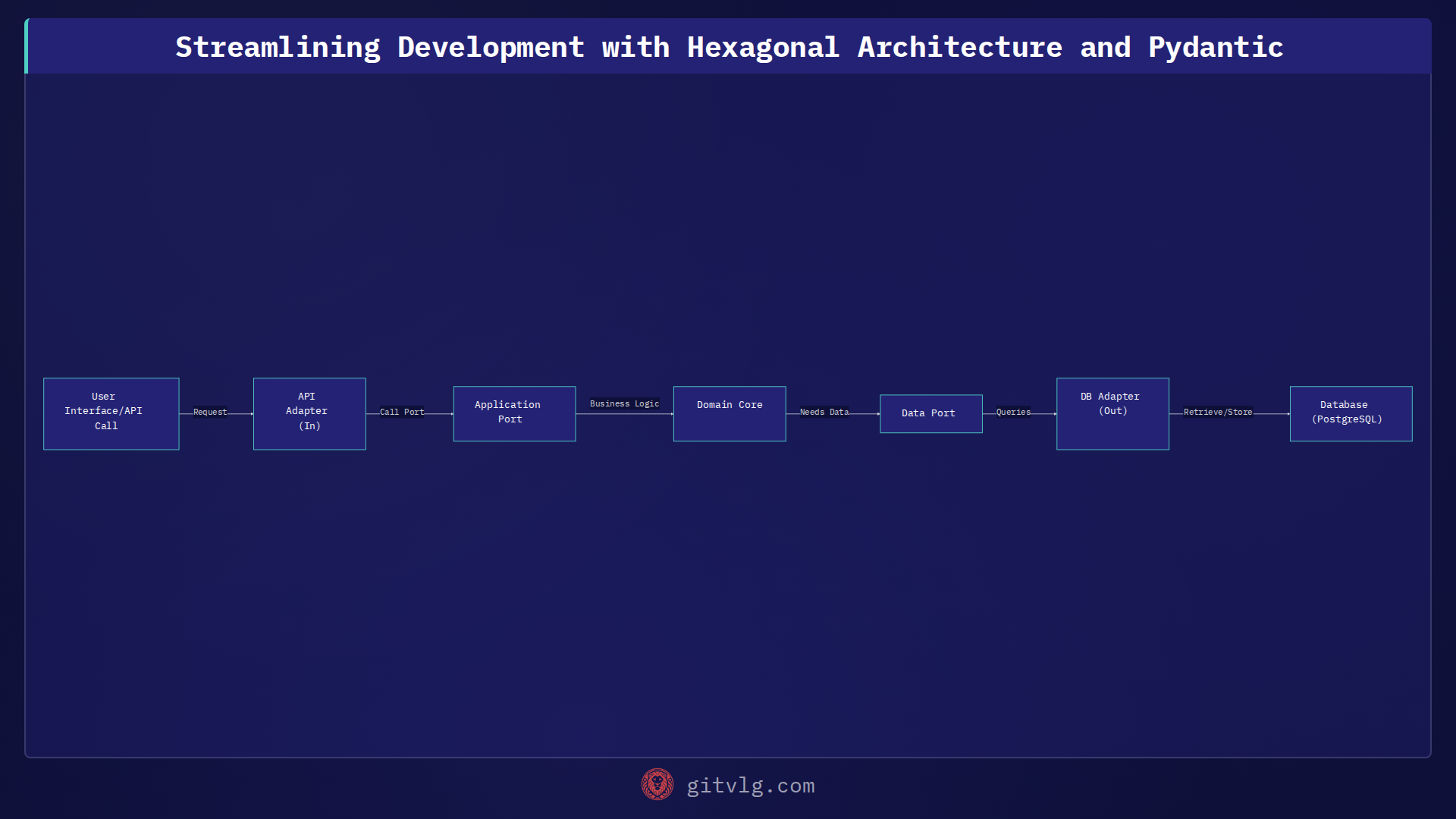

• Hexagonal Architecture: This pattern emphasizes a strong separation between the core business logic (the 'domain') and external concerns (like databases, UIs, or external APIs). The domain defines 'ports' (interfaces) that external 'adapters' implement. This ensures that our core application remains independent of specific technologies and can be easily swapped or tested.
• Pydantic: For our Python backend, Pydantic models act as definitive data contracts. By defining schemas for input, output, and internal data structures, Pydantic automatically validates data at runtime. This ensures that any data flowing into or out of a 'port' adheres to the expected structure, catching errors early and preventing inconsistencies.

For example, a Pydantic model can enforce the structure of an API request body or a database record, ensuring that our React frontend receives or sends data in the expected format.

Here’s a simplified Python example demonstrating a Pydantic model for a user profile:

from pydantic import BaseModel, Field
from typing import Optional

class UserProfile(BaseModel):
    user_id: str = Field(..., description="Unique user identifier")
    username: str
    email: str = Field(..., example="[email protected]")
    age: Optional[int] = Field(None, gt=0, lt=120)
    is_active: bool = True

# Example usage of the model for validation
# try:
#     valid_user = UserProfile(user_id="abc-123", username="john.doe", email="[email protected]", age=30)
#     print(valid_user.model_dump_json())
# except Exception as e:
#     print(f"Validation error: {e}")

This UserProfile model ensures that any data representing a user adheres to these types and constraints, providing clear documentation and runtime validation.

Conceptual Results

While specific metrics are continuously gathered, the adoption of these patterns has conceptually led to:

• Reduced Integration Bugs: Data contract discrepancies are caught earlier due to Pydantic validation, minimizing issues between services and the UI.
• Clearer System Boundaries: Developers now have a better understanding of where responsibilities lie, simplifying feature development and debugging.
• Improved Code Quality: Enforced data structures and architectural guidelines encourage cleaner, more modular code.
• Smoother Merges: Changes are more isolated to specific adapters or the domain, reducing the likelihood of widespread conflicts during develop branch merges.
• Easier Testing: The domain logic, being free from external dependencies, is significantly easier to test independently.

Getting Started

1. Define Your Domain: Clearly identify your core business logic and entities, making them independent of frameworks or databases.
2. Establish Ports: Create interfaces (abstract classes in Python) that your domain will interact with for data persistence, external services, or user interactions.
3. Implement Adapters: Write concrete implementations for your ports using specific technologies (e.g., a PostgreSQL adapter, a FastAPI adapter, a React component).
4. Use Pydantic: Apply Pydantic models to define the input and output structures for your ports and API endpoints.
5. Educate the Team: Foster a shared understanding of these patterns to ensure consistent application across the project.

Key Insight

Architectural patterns like Hexagonal Architecture, paired with strong data validation tools like Pydantic, transform merge conflicts and integration headaches into structured, predictable development cycles. By focusing on explicit contracts and clear separation of concerns, teams can significantly enhance maintainability, reduce bugs, and accelerate feature delivery in complex, multi-language projects.
